EHT - Complete Billet Tank Top Hat Kit / Dual Pump Solution for Audi 2000-2005 C5 A6 / A6 Allroad 2.7T / 2003-2004 C5 RS6 4.2 / B6 A4 1.8T B6 S4 4.2
NOTE: THIS IS PRE-ORDER, THESE WILL BE SHIPPING BY 3RD WEEK OF FEBRUARY IF ORDERED TODAY

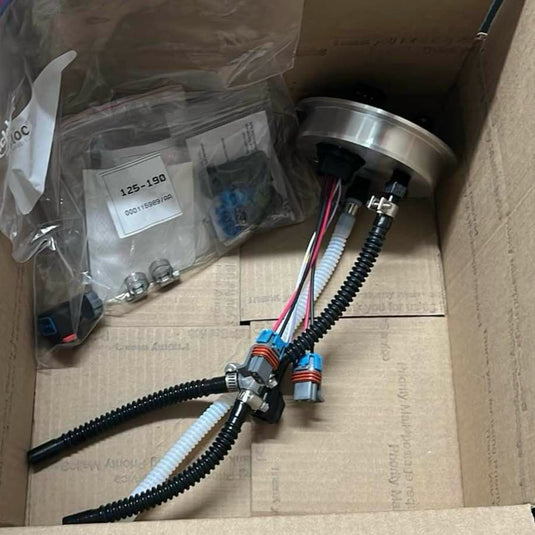

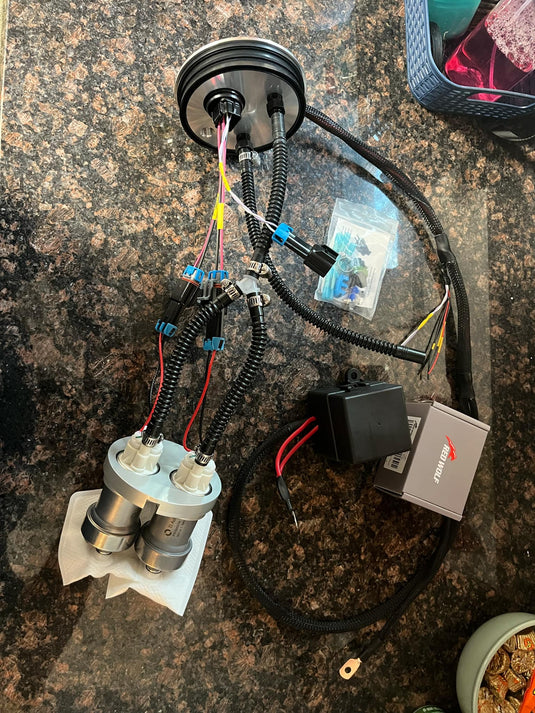

This is a complete kit for running single or dual pump, that includes everything needed including billet tank hat w/ seal, in-tank/outside tank wiring, hoses to drop in up to two Walbro 450 fuel pumps. This includes in tank wiring as well as outside tank wiring and even 17' of wire to go to the battery terminal up front. The only thing not included is the dual pump holder for the basket and the pumps themselves, both can be added on however to this product (see add-ons below). For customers running dual pump, we recommend installing a Hobbs switch on the 2nd pump set to 15 psi, to keep the 2nd pump running only in boost, this will prevent return line from being overrun at low loads and idle.
- Dual pump relay kit with electrical connector

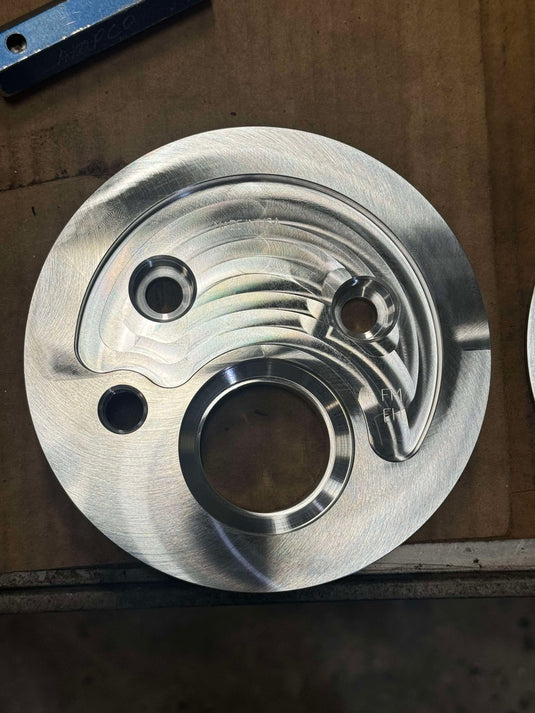

- Billet hat b5
- 8/6 AN fittings for Feed/Return
- Bottom side fittings
- 1/4”npt plug
- All in-tank PTFE hoses
- In-tank wiring for level sensor with connector and 2 pigtails installed and labeled for Walbro 450lph pumps.
- 2x Walbro 450 Pump strainers
- Tank gasket for hat
- 17’ of 6awg black wire with connections on either side to go to battery
- Relay kit mounting hardware with breaker mounting hardware
- Wire harnesses are all high quality Tefzel wires
Note: b6 cars do require a restrictor as the factory return is on the opposite side
