APR 980cc MPI Injector Kit

Fits Audi RS3 17-24, TT RS Quattro 18-22

High horsepower configurations often require more fuel, especially on applications where ethanol is used. The APR 980cc MPI Injector Upgrade Kit includes an upgraded high-flow multiport injection (MPI) injector and harness necessary to satisfy high horsepower builds. The kit uses a compact and extended tip Bosch EV 14 injector that supports Ethanol and Methanol and flows 980cc/min at 3 bar. A high quality 2 wire harness with braided wire sheathing converts the Bosch Jetronic connector to the necessary factory style connector making this upgrade plug-and-play with an associated ECU upgrade.

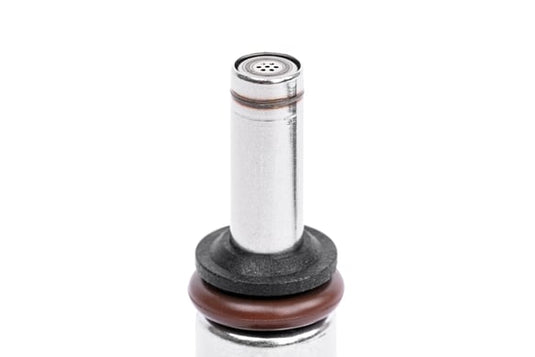

• Bosch EV 14 CKxT MPI injector (0280 158 040)

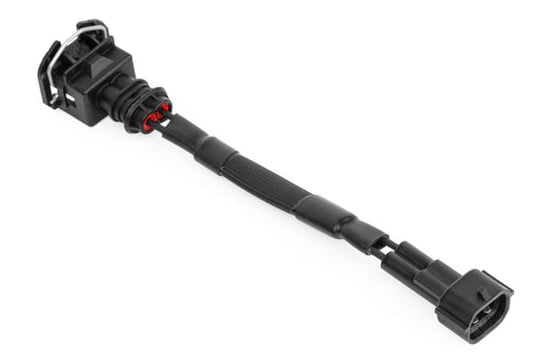

• APR Bosch Jetronic to OEM 2 pin harness
• 980cc/min, 670g/min, or 89lb/hr @ 3 bar (n-heptane)
• Supports up to 8 bar of use in motorsport configurations
• E85 and M100 compatible
• 30° single cone spray angle with 0° bent angle and 0° gamma angle
• 33.6mm compact body
• 24mm extended tip nozzle
• Top-feed injector
• 12 ohm coil resistance
• 150 mm long harness with braided wire sheathing
• ECU software required for use
• Plug-and-play on 2.5 EA855 EVO & 2.0T EA888 Gen 3, where supported
